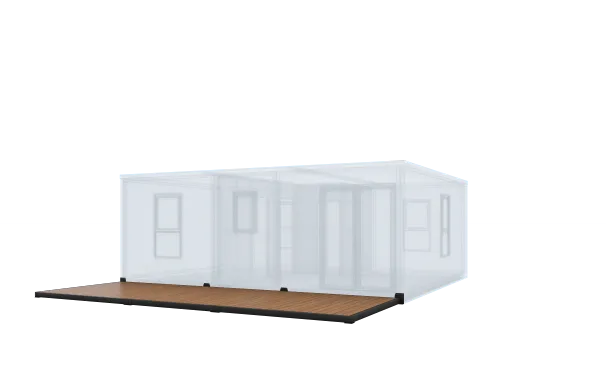

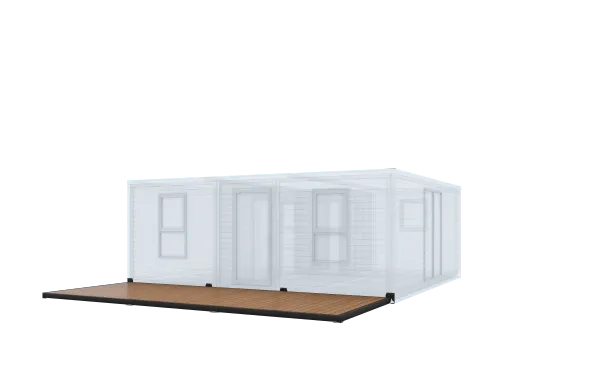

Floor

3 in total, applied 100*80 steel frame (Q355, wall thickness 2.5mm), the square tube is galvanzied and sprayed with plastic.
0.426mm Colored Steel Sheet (Surface AZM100g/m2 + PE coated 20/5um) + Steel Frame + 89mm PU + 8mm PVC (Width 1200mm).
R-Value: 24.75ft2 *hr. F/BTU.89mm PU R-Value: 22.97ft2. hr. F/BTU

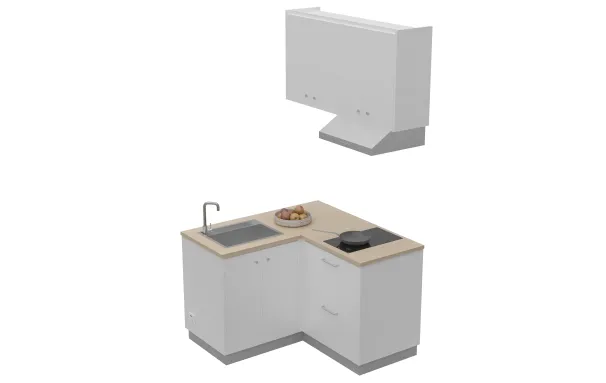

Front And Back Wall Of The General Kitchen And Bathroom Module

2 in total, applied 80*80 steel frame (Q355, wall thickness 2.5mm), the square tube is galvanzied and sprayed with plastic.
7.5mm Plank (surface is brushed with 500g/m2 wood oil) + Steel Frame + 80mm PU + 9mm Bamboo and Wood Fiberboard (Width 600mm).
R-Value: 22.66 ft2 +hr. F/BTU

Partition Wall of the General Kitchen and Bathroom Module

4 in total, applied 50*50 steel frame (Q355, wall thickness 1.5mm) the square tube is galvanzied and sprayed with plastic.
9mm Bamboo and Wood Fiberboard (Width 600mm) + 9mm OSB Board + SteelFrame + 50mm Glass Wool + 9mm OSB Board +9mm Bamboo and Wood Fiberboard (Width 600mm).
R-Value: 13.51 ft2. hr+F/BTU

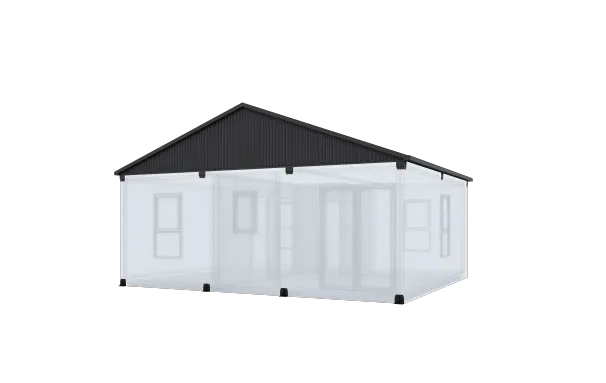

Ceiling Board

3 in total, applied 80*80 steelframe (Q355, wall thickness 2.5mm), the square tube is galvanzied and sprayed with plastic.
0.426mm Colored Steel Sheet (Surface AZM100g/m+PE coated 20/5um)+ Steel Frame +80mm PU + 9mm Bamboo and Wood Fiberboard (Width 600mm).
R-Value: 22.43 ft2 . hr. F/BTU

Foldable Walls

6 in total，applied 75*68 (convex 18) frame (wall thickness 1.8mm), galvanzied and sprayed with plastic.
27mm Craved Metal Board + Steel Frame +75mm PU + 9mm Bamboo and Wood Fiberboard (Width 600mm)
R-Value: 26.18 ft2 .hr. F/BTU
